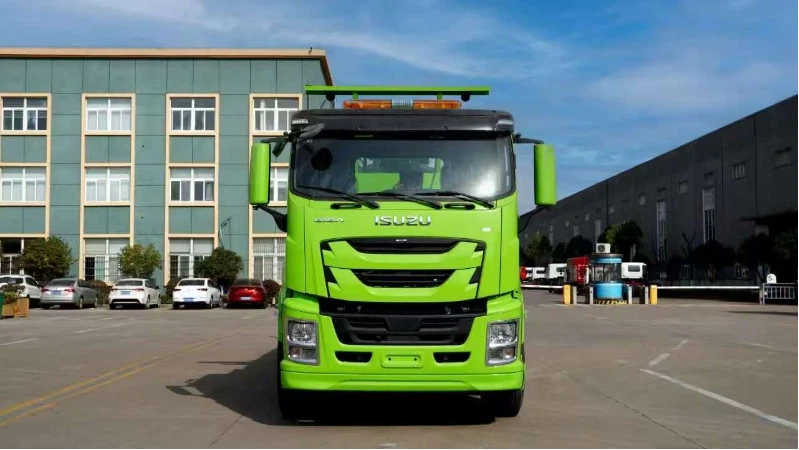

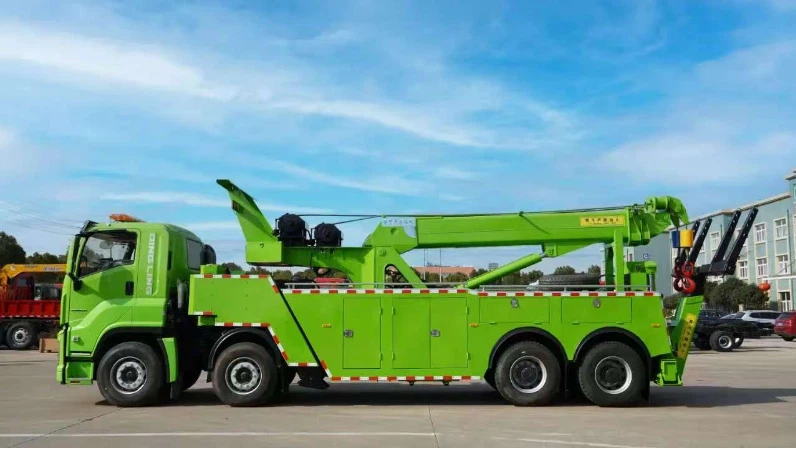

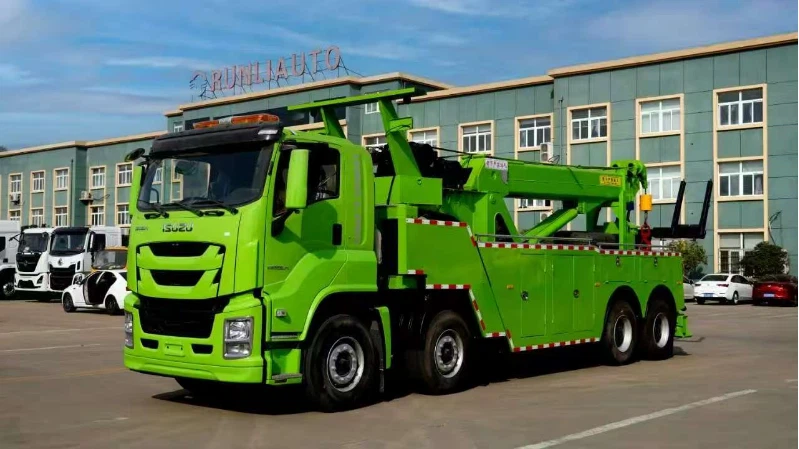

Isuzu Giga 5X Heavy-Duty Integrated Traction Lift Rescue Vehicle (Rotary Wrecker) Vehicle Introduction

This model is developed based on the Isuzu Giga 5X heavy-duty chassis, integrating rotary lifting, bottom traction and heavy towing functions into the same platform, and is used for large vehicle accident rescue, heavy-duty obstacle clearing and road emergency response operations in complex scenarios.

product-799-450

Isuzu Giga 5X heavy-duty integrated traction and lifting rescue vehicle (rotating tow truck) Core Advantages

Integrated Structure

The upper structure integrates a rotary lifting device and a multi-stage telescopic bottom traction system, enabling lifting, side-pulling, towing, and repositioning operations within a single vehicle platform, reducing the need for multi-equipment coordination.

360° Continuous Rotation

The lifting system supports continuous 360° rotation, unrestricted by the working direction, allowing for multi-angle lifting and towing operations without adjusting the overall vehicle position.

Multi-Section Telescopic Boom Structure

The boom employs a three-section telescopic structure, with lifting capacity varying according to the working radius, meeting the needs of close-range heavy-load lifting and medium-to-long-range operations, with a maximum lifting height of approximately 12 meters.

Multi-Stage Telescopic Bottom Traction Device

The bottom traction system is a three-section telescopic structure with a maximum working length of approximately 11 meters, used for lifting, towing, and adjusting the posture of accident vehicles.

Dual Hydraulic Winch Traction System

Equipped with two hydraulic winches each with a rated traction force of 200 kN, and a single wire rope length of approximately 45 meters, it can be used for straight-line traction, directional traction, and combined force conditions.

ISUZU GIGA 5X Heavy Duty Rotary Wrecker Vehicle Technical Specifications

Chassis Model:	Isuzu Giga 5X Heavy-Duty Truck	Cab type:	High cab with sleeper (standard)
Engine Model:	ISUZU 6WG1-TCG62(520 HP)	Emission Standard:	EURO V
Max Torque：	Approximately 2060 Nm or higher (Specific rating confirm w/ factory)
Gearbox:	FAST Gear (FHI) 12JSD240TA-B (Manual, 12 Forward + 2 Reverse Gears)
Drive Configuration:	6x4
Tire model:	front 385/65R22.5, rear 315/80R22.5
Standard configuration of the upper body:	1. 360-degree continuous rotation. 2. Three-section boom, maximum lifting weight 50T, maximum lifting weight 10 tons when fully extended, maximum lifting height 12 meters. 3. Three-section support arm, arm length 11 meters, split carriage. 4. Double-side linkage operating device, remote control operation. 5. 3 rear working lights, 3 rear indicator lights. 6. 2 200KN hydraulic winches (45 meters of wire rope). 7. 1 set of U-shaped tire holding device, 8. 4 pairs of steel forks, 1 pair of steel plate lifting lugs, 9. 1 pair of trailer seats, 1 set of auxiliary brake air pipe assembly.

ISUZU GIGA 5X Heavy Duty Rotary Wrecker Vehicle Main Application Scenarios

Heavy Vehicle Accident Clearing: Used for towing, lifting, and transferring large trucks, buses, and other accident vehicles.
Highway and Trunk Road Assistance: Suitable for heavy-duty clearing and towing operations on highways and urban expressways.
Port and Logistics Park Operations: Used for accident handling and relocation of container transport vehicles and heavy-duty tractors within the site.
Complex Terrain Accident Handling: Enables multi-angle towing and repositioning operations on slopes, narrow roads, or confined spaces.

ISUZU GIGA 5X Heavy Duty Rotator Wrecker Frequently Asked Questions (FAQ)

Q1: What is the maximum combined weight that this truck can safely lift and tow?

A1: Our truck's total lifting capacity is dependent on several factors simultaneously: crane boom angle/reach, load position relative to the crane, bottom lift weight, ground conditions, and use of stabilizers. Maximum lift capacity for a single crane at minimum radius is 50 tons. Maximum pull for a single winch is 20 tons. Always consult the specific load chart for your truck configuration and strictly adhere to the safe working load limit (SWL) for the combined operation. Towing capacities for bottom lifts are typically high (e.g. 30+ tons), but the confirmed maximum towing weight is dependent on chassis/axle ratings.

Q2: Does this crane really do a continuous 360-degree rotation?

A2: Yes. The hydraulic rotator allows for unlimited, uninterrupted 360-degree rotation, providing maximum load positioning flexibility regardless of truck orientation. There is no need to "rewind" the hose or reposition the truck during the rotation.

Q3: How long does it take for an operator to become proficient?

A3: While the controls are intuitive (especially the two-way linkage and clear markings), extensive professional training is highly recommended to become proficient and safe in operating such a complex and powerful machine. It usually takes weeks or months of supervised operation and professional training to become a skilled, safe and efficient operator, covering load dynamics, stability, winch techniques and extensive use of load charts. We provide comprehensive operator training.

Q4: What is the operating range of the vehicle's wireless remote control?

A4: The range varies by model, but is typically 15-25 meters (50-80 feet) with clear sight. This allows the operator to safely stay away from moving loads and potential crush areas while maintaining a good view of the operation. Redundant safety systems (such as emergency stops on the remote control and main controller) are standard.

Q5: How long does it usually take to prepare for a large lift or complex rescue?

A5: Preparation time will vary depending on the complexity of the job, terrain and crew experience. For a stable site that requires full crane operation and bottom crane deployment, experienced crews can usually complete preparation in 10-20 minutes. Complex preparations (e.g. soft ground that requires matting, multiple winch ropes) naturally take longer. Hydraulic stabilizers and remote controls help simplify the process.

Q6: What are the main maintenance points for rescue equipment?

A6: Key maintenance includes:
1. Regularly change hydraulic oil/filters according to the manufacturer's schedule.
2. Visually inspect hydraulic leaks (hoses, cylinders, pumps).
3. Lubricate all pivot points, boom pins, outrigger pins and winch assemblies regularly (usually daily in high-load applications).
4. Check all wire ropes for kinks, broken wires and proper drums; replace as specified.
5. Inspect all parts of the boom for damage or wear.
6. Check all accessory chains, slings and hooks for damage and expired certifications.

ISUZU GIGA 5X Heavy Duty Rotary Wrecker Service and Support

Global Isuzu Network: Benefit from Isuzu's global network of dealers and service centers, enjoying chassis maintenance and repair services. Engine, transmission, and chassis parts are available worldwide.
Regarding rescue equipment warranty: Cranes, chassis lifts, winches, and hydraulic systems are covered by a comprehensive warranty (typically a one-year parts and labor warranty, subject to applicable terms).
Professional loader support: Access to technical documentation, repair manuals, and dedicated support channels from professional rescue equipment manufacturers.
Operator and technician training: We provide initial operator training and can arrange professional technician training courses for the rescue system.
Regarding parts inventory and supply chain: We provide robust supply chain support for critical consumables and spare parts for rescue equipment through international partners. Expedited shipping services are also available.
On-site service support: Optional on-site technical support and major repair coordination services are available, depending on the specific location and agreement.
